The system is designed for measurements for electrical impedance tomography or general multi-port impedance measurement applications. True parallel measurements and tightly synchronized switching allows for fast frame rates.

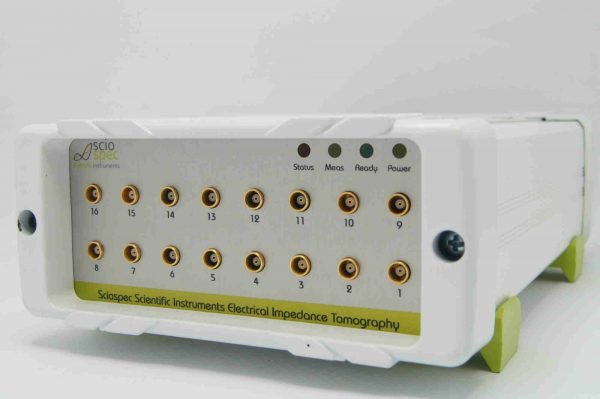

• 16 dual role electrode connections serving both as voltage measurement and current injection ports
• Pseudo-differential current source for excitation signals up to 10 mA
• Tightly synchronized data acquisition block for  truly simultaneous sampling of all sixteen channels
• Fast switching ultra-low leakage reed relay injection switch matrix for selection of any combination of 2 out of 16 channels for positive and negative injection ports
• Sciospec SineFit algorithm for fast and precise signal extraction
• Frequency range from 100 Hz … 1 MHz
• Spectral measurements with frequency sweeps with up to 128 frequencies
• Current excitation from 100 nA … 10 mA peak amplitude
• Frame rates up to 100 fps
• Software with ready to go imaging algorithms
• Fully customizable – just ask us
• OEM available

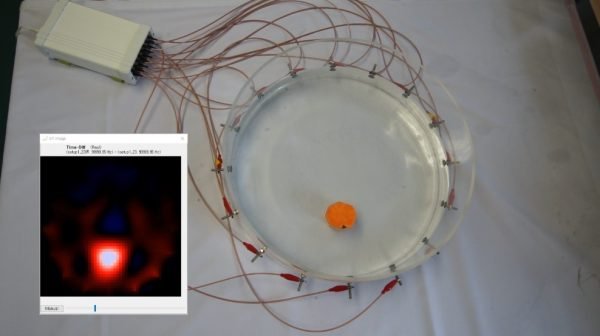

For easy entry a software provides EIT image reconstruction functionalities for time- and frequency-difference imaging. Alternatively you can just use the MATLAB code and import your data to EIDORS or write your own image reconstruction and import that to our software.
