Medical Research ISX-3

FAST. PRECISE. PATIENT-SAFE.

You want to use impedance spectroscopy in a medical research application? You like it simple, precise and fast and you don't want to worry about patient safety? Then check out the Medical Research ISX-3 impedance analyzer.

Configure now

It bases on our ISX-3 impedance analyzer. It is equipped with Sciospec’s IF frontend with 4-port BNC interface supporting simple 2 point measurements, as well as 3 and 4 electrode configurations. Within the measurement range from 100 mHz to 10 MHz (extendable to 40 or 100 MHz) it covers a dynamic range of 300dB (mOhm…TOhm) with a base precision of 0.01%.

Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.

Publications with the Medical Research ISX-3

Enhancing Bioreactor Monitoringwith Advanced Impedance Technology

publication

Non-Invasive Bioreactor Monitoring Using Electrical Impedance Spectroscopy

Explore how our ISX-3 Impedance Analyzer served as a trusted reference tool in the development of advanced biomedical devices like the MiGUT capsule

Illustration of a person ingesting the MiGUT device, which transmits real-time Gastrointestinal Electrophysiology signals from the stomach to an external receiver, with a zoom-in showing the electrode interface and a schematic of impedance-based contact detection using Sciospec technology.

publication

Advancing Gastrointestinal Electrophysiology: How Ingestible Devices and Impedance Analysis Work Together

Explore how our ISX-3 Impedance Analyzer served as a trusted reference tool in the development of advanced biomedical devices like the MiGUT capsule

publication

Inline Microbattery Testing at TDK/Epcos

See how we scaled microbattery testing to 512 fully parallel channels for TDK/Epcos delivering lab-grade precision and seamless robotic integration.

publication

Inline Microbattery Testing at TDK/Epcos

See how we scaled microbattery testing to 512 fully parallel channels for TDK/Epcos delivering lab-grade precision and seamless robotic integration.

Compact impedance analyzer
IF Frontend 100 mHz…10 MHz, mOhm…TOhm
Frequency extendable to 40 MHz or even 100 MHz
2, 3 and 4 electrode configurations
High resolution (up to 2048 frequencies per sweep)
Base precision of 0.01%
+/- 1 V DC Bias
ExtensionPort for application specific frontends

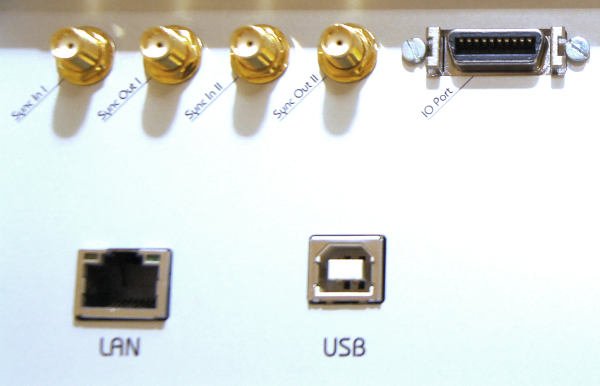

Ultra-fast hardware synchronization through sync in/out connectors (optional)
Simple connection through Full Speed USB, Ethernet or Wireless LAN
PC-based control & data analysis (Sciospec software suit included)
Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.

Medical Research ISX-3 Extras

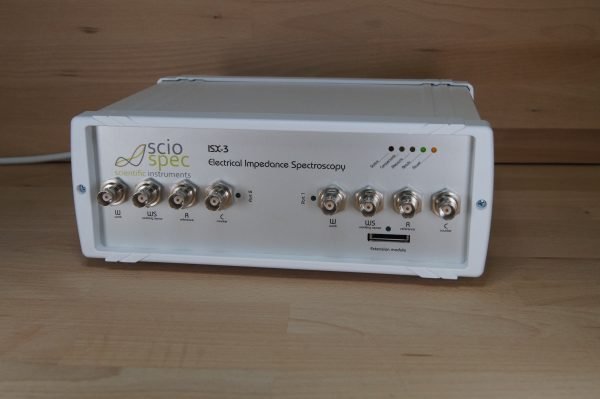

Two 4 point channels:
- First channel AC coupled
- Multiplexed second channel DC coupled
Additional Multiplexers available
- First 4-point measurement channel DC coupled (external AC coupling interface included)
- Multiplexer: Choose between 16, 32 or 64 channels being AC coupled
Integrated battery pack for measurements up to 3 hours
IsoIO (isolated IO module)
- 12 isolated digital outputs
- 12 isolated digital inputs with pull-ups
- 4 isolated bidrectional I²C ports with pull-ups
- Isolated digital supply rail (default 3.3V)
Optimized for electrial safety

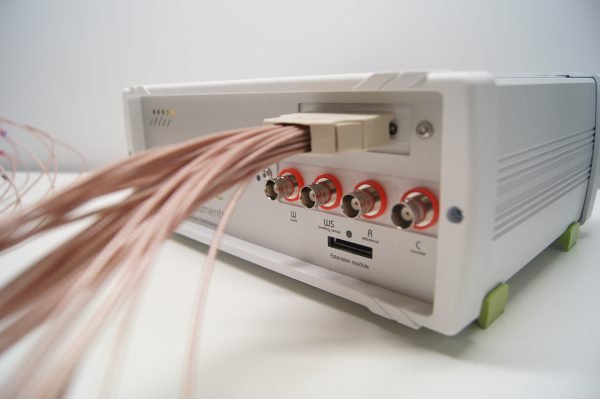

Medical Research ISX-3 with 32-channel multiplexer

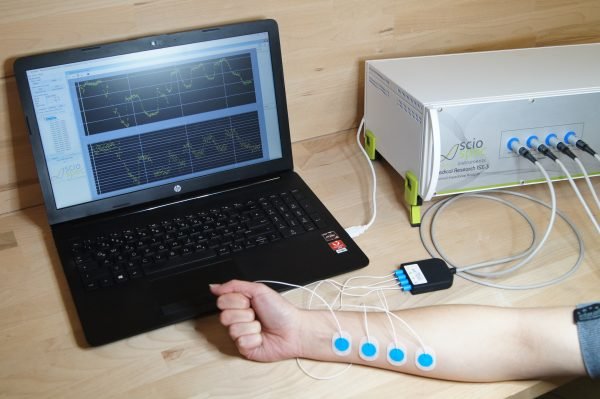

In a very simple setup we used the Medical Research ISX-3 with a 32-channel MUX to measure the forearm impedance change caused movements of the hand.

Application brief
IMPEDANCE MEASUREMENT OF A FOREARM

The ISX-3 impedance analyzer is not a medical product and as such its intended purpose does not include diagnosis and/or treatment of patients. But the Medical Research ISX-3 includes several added safety measures specified in accordance with DIN EN 60601-1:2013-12 "Medical electrical equipment – Part 1: General requirements for basic safety and essential performance". These measures ease the application for excemptions for experiments on patients.

John Doe Tweet

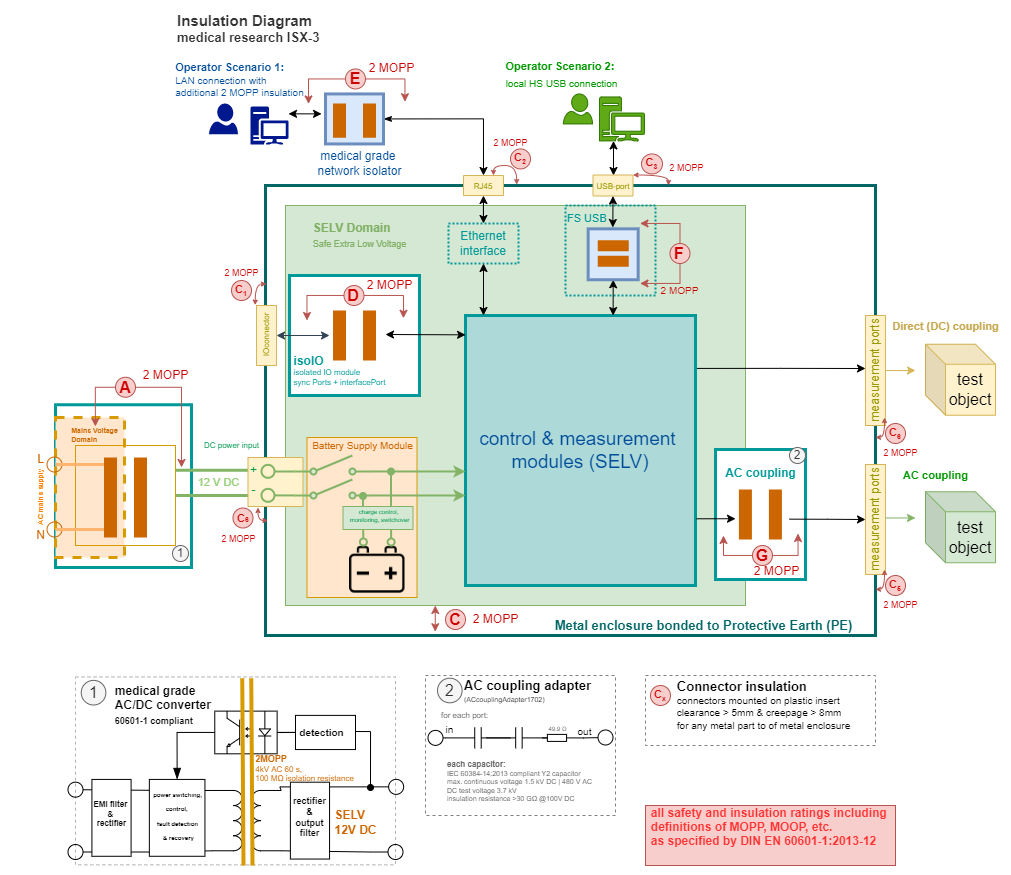

Medical grade safety features

Enclosure: prevention of contact between electrical circuitry and external equipment or humans, shielding of measurement frontend (noise reduction) and mechanical safety
Medical grade power supply: external isolated AC/DC converter supplies device with 12 V DC, additionally stand alone battery operation is possible including software controllable electromechanical switch-off for DC input lines
Isolated Full speed USB interface: fullspeed USB port for instrument control and data readout from PC
Ethernet interface: standard RJ45 Ethernet interface for remote control of the instrument
- The interface is not internally isolated. An external medical grade network isolator (included in the offer) can be inserted in the communication path to ensure safe isolation ratings.
IsoIO module: low level communication interfaces including hardware synchronisation and flexible programmable IO standards including serial (UART, SPI, I2C) for use of the instrument with other external equipment
Measurement and control modules: core functionality of the impedance analyzer including measurement control, signal processing, excitation generation and analog measurement functions
AC coupling frontend: External module for AC coupling of measurements ports. Blocks DC currents and adds a high pass filter characterisitic limiting low frequency currents. Isolates the instrument galvanically from the measurement object or patient interface.

Configure your Medical Research ISX-3 and get a quote

Get in touch with us

+49 3425 88399 00

info@sciospec.de

Sciospec Scientific Instruments GmbH
Leipziger Str. 43b, 04828 Bennewitz, Germany

Medical Research ISX-3

SCHNELL. PRÄZISE. SICHER.

Sie möchten Impedanzspektroskopie in einer medizinischen Forschungsanwendung einsetzen? Sie mögen es einfach, präzise und schnell und möchten sich keine Sorgen um die elektrische Sicherheit machen? Dann schauen Sie sich das Medical Research ISX-3 an.

Jetzt konfigurieren

Es basiert auf unserem Impedanzanalysator ISX-3. Es ist mit dem IF-Frontend von Sciospec mit 4-Port-BNC-Schnittstelle ausgestattet, das einfache 2-Punkt-Messungen sowie 3- und 4-Elektrodenkonfigurationen unterstützt. Im Messbereich DC bis 10MHz wird ein Dynamikbereicht von 180dB (Ohm…GOhm) und eine Basis-Präzision besser als 0.1% erreicht.

Darüber hinaus enthält das Medical Research ISX-3 Maßnahmen zur erhöhten elektrischen Sicherheit, einschließlich einer Isolierung nach medizinischen Standards, die einen sicheren Betrieb des Instruments in medizinischen Forschungsumgebungen ermöglicht.

Publications with the Medical Research ISX-3

An overview of the modular EIT systems architecture of an EIT system.

publication

Modular Electrical Impedance Tomography (EIT) Systems with Sciospec EIT16

Explore how Sciospec EIT16 enables modular Electrical Impedance Tomography (EIT) Systems from open-source prototyping to full product integration.

publication

Tracking Conductivity Changes from PEF in Plant Tissue via EI

Discover how the Sciospec ISX‑3 enables precise conductivity tracking in plant tissue exposed to pulsed electric fields (PEFs)

mage showing a workflow or visual result of DNA detection and analysis in prostate cancer samples using Prostate Cancer Research Electrical Bioimpedance Spectroscopy (EBiS), with data collected via the Sciospec ISX-3 impedance analyzer

publication

Electrical Impedance for Gene Detection: Supporting Prostate Cancer Research

Explore how the Sciospec ISX-3 empowers cancer research and genetic diagnostics.

Microscope Nanotechnology-Assisted DNA Characterization strands in a high-tech lab environment, symbolizing bioimpedance analysis of genetic material

publication

Nanotechnology-Assisted DNA Characterization Using Bioimpedance and Artificial Intelligence

Discover how our multi-frequency impedance solutions can accelerate your DNA Characterization, nanoparticle-assisted biosensing and AI-driven characterization workflows.

kompakter Einkanal-Impedanzanalysator
IF-Frontend DC…10MHz, Ohm…GOhm
Frequenzbereich erweiterbar bis 40 oder 100 MHz
2-, 3- und 4-Elektroden-Konfiguration
hohe Auflösung (bis zu 2048 Frequenzen pro Sweep)
Präzision <0.1%
+/- 1V DC Bias
ExtensionPort für anwendungsspezifische Frontends
superschnelle Hardware-Synchronisation durch Sync-In/Out-Connectors
einfacher Anschluss über High Speed USB, Ethernet oder Wireless LAN
PC-basierte Steuerung & Datenauswertung (Sciospec Software inkl.)
Sciospec Com-Interface ermöglicht die Steuerung des Instruments aus Java, C, LabView, Matlab etc.

Der Impedanzanalysator ISX-3 ist kein Medizinprodukt und als solches umfasst sein Verwendungszweck nicht die Diagnose und/oder Behandlung von Patienten. Das Medical Research ISX-3 enthält jedoch mehrere zusätzliche Sicherheitsmaßnahmen, die gemäß DIN EN 60601-1:2013-12 „Medizinische elektrische Geräte – Teil 1: Allgemeine Anforderungen an die grundlegende Sicherheit und wesentliche Leistungsmerkmale“ spezifiziert sind. Diese Maßnahmen erleichtern die Beantragung von Ausnahmen für Versuche an Probanden.

John Doe Tweet

Extras für die medizinische Sicherheit

Gehäuse: Kontaktverhinderung zwischen Stromkreisen und externen Geräten oder Menschen, Abschirmung des Mess-Frontends (Rauschunterdrückung) und mechanische Sicherheit
Stromversorgung für medizinische Zwecke: Netzstromversorgung von außen, Isolierung der internen Schaltung im sicheren Kleinspannungsbereich (SELV) vom Netzspannungsbereich
isoliert Full-Speed-USB-Schnittstelle:Full-Speed -USB-Anschluss zur Gerätesteuerung und Datenauswertung an einem PC
Ethernet-Schnittstelle: Standard-RJ45-Ethernet-Schnittstelle zur Fernsteuerung des Geräts. Die Schnittstelle ist nicht intern isoliert. Ein externer medizinischer Netzwerkisolator (im Angebot enthalten) kann in den Kommunikationspfad eingefügt werden, um sichere Isolationswerte zu gewährleisten.
IsoIO-Modul: Low-Level-Kommunikationsschnittstellen einschließlich Hardware-Synchronisation und flexibel programmierbarer IO-Standards einschließlich serieller (UART, SPI, I2C) zur Verwendung des Instruments mit anderen externen Geräten
AC-Kopplungs-Frontend: Externes Modul zur AC-Kopplung von Messanschlüssen. Blockiert DC-Ströme und fügt einen Hochpassfilter hinzu, der niederfrequente Ströme begrenzt. Trennt das Gerät galvanisch vom Messobjekt oder der Patientenschnittstelle.

ExtensionPort System

Das ExtensionPort-System ermöglicht die flexible Erweiterung des Impedanzanalysators mit anwendungsspezifischen Frontends und Adaptern. Schnittstellen und Spezifikationen des ExtensionPorts sind dem Nutzer vollständig zugänglich, was eigene Entwicklungen mit Sciospec-Geräten deutlich vereinfacht. Der Steckverbinder überträgt Messignale für 2-,3- und 4-Elektroden- Konfiguration, Supply Rails und digitale IOs, die optional als serielle Schnittstellen (I2C, UART) konfiguriert werden können.

Configure your isx-3 and get a quote

Get in touch with us

+49 3425 88399 00

info@sciospec.de

Sciospec Scientific Instruments GmbH
Leipziger Str. 43b, 04828 Bennewitz, Germany

Medical Research ISX-3

FAST. PRECISE. PATIENT-SAFE.

Configure now

Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.

Publications with the Medical Research ISX-3

publication

Non-Invasive Bioreactor Monitoring Using Electrical Impedance Spectroscopy

Explore how our ISX-3 Impedance Analyzer served as a trusted reference tool in the development of advanced biomedical devices like the MiGUT capsule

publication

Advancing Gastrointestinal Electrophysiology: How Ingestible Devices and Impedance Analysis Work Together

Explore how our ISX-3 Impedance Analyzer served as a trusted reference tool in the development of advanced biomedical devices like the MiGUT capsule

publication

Inline Microbattery Testing at TDK/Epcos

See how we scaled microbattery testing to 512 fully parallel channels for TDK/Epcos delivering lab-grade precision and seamless robotic integration.

publication

Inline Microbattery Testing at TDK/Epcos

See how we scaled microbattery testing to 512 fully parallel channels for TDK/Epcos delivering lab-grade precision and seamless robotic integration.

Compact impedance analyzer
IF Frontend 100 mHz…10 MHz, mOhm…TOhm
Frequency extendable to 40 MHz or even 100 MHz
2, 3 and 4 electrode configurations
High resolution (up to 2048 frequencies per sweep)
Base precision of 0.01%
+/- 1 V DC Bias
ExtensionPort for application specific frontends
Ultra-fast hardware synchronization through sync in/out connectors (optional)
Simple connection through Full Speed USB, Ethernet or Wireless LAN
PC-based control & data analysis (Sciospec software suit included)
Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.

Medical Research ISX-3 Extras

Two 4 point channels:
- First channel AC coupled
- Multiplexed second channel DC coupled
Additional Multiplexers available
- First 4-point measurement channel DC coupled (external AC coupling interface included)
- Multiplexer: Choose between 16, 32 or 64 channels being AC coupled
Integrated battery pack for measurements up to 3 hours
IsoIO (isolated IO module)
- 12 isolated digital outputs
- 12 isolated digital inputs with pull-ups
- 4 isolated bidrectional I²C ports with pull-ups
- Isolated digital supply rail (default 3.3V)
Optimized for electrial safety

Medical Research ISX-3 with 32-channel multiplexer

In a very simple setup we used the Medical Research ISX-3 with a 32-channel MUX to measure the forearm impedance change caused movements of the hand.

Application brief
IMPEDANCE MEASUREMENT OF A FOREARM

The ISX-3 impedance analyzer is not a medical product and as such its intended purpose does not include diagnosis and/or treatment of patients. But the Medical Research ISX-3 includes several added safety measures specified in accordance with DIN EN 60601-1:2013-12 "Medical electrical equipment – Part 1: General requirements for basic safety and essential performance". These measures ease the application for excemptions for experiments on patients.

John Doe Tweet

Medical grade safety features

Enclosure: prevention of contact between electrical circuitry and external equipment or humans, shielding of measurement frontend (noise reduction) and mechanical safety
Medical grade power supply: external isolated AC/DC converter supplies device with 12 V DC, additionally stand alone battery operation is possible including software controllable electromechanical switch-off for DC input lines
Isolated Full speed USB interface: fullspeed USB port for instrument control and data readout from PC
Ethernet interface: standard RJ45 Ethernet interface for remote control of the instrument
- The interface is not internally isolated. An external medical grade network isolator (included in the offer) can be inserted in the communication path to ensure safe isolation ratings.
IsoIO module: low level communication interfaces including hardware synchronisation and flexible programmable IO standards including serial (UART, SPI, I2C) for use of the instrument with other external equipment
Measurement and control modules: core functionality of the impedance analyzer including measurement control, signal processing, excitation generation and analog measurement functions
AC coupling frontend: External module for AC coupling of measurements ports. Blocks DC currents and adds a high pass filter characterisitic limiting low frequency currents. Isolates the instrument galvanically from the measurement object or patient interface.

Configure your Medical Research ISX-3 and get a quote

Get in touch with us

+49 3425 88399 00

info@sciospec.de

Sciospec Scientific Instruments GmbH
Leipziger Str. 43b, 04828 Bennewitz, Germany

Medical Research ISX-3

FAST. PRECISE. PATIENT-SAFE.

Configure now

Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.

Publications with the Medical Research ISX-3

publication

Non-Invasive Bioreactor Monitoring Using Electrical Impedance Spectroscopy

Explore how our ISX-3 Impedance Analyzer served as a trusted reference tool in the development of advanced biomedical devices like the MiGUT capsule

publication

Advancing Gastrointestinal Electrophysiology: How Ingestible Devices and Impedance Analysis Work Together

Explore how our ISX-3 Impedance Analyzer served as a trusted reference tool in the development of advanced biomedical devices like the MiGUT capsule

publication

Inline Microbattery Testing at TDK/Epcos

See how we scaled microbattery testing to 512 fully parallel channels for TDK/Epcos delivering lab-grade precision and seamless robotic integration.

publication

Inline Microbattery Testing at TDK/Epcos

See how we scaled microbattery testing to 512 fully parallel channels for TDK/Epcos delivering lab-grade precision and seamless robotic integration.

Compact impedance analyzer
IF Frontend 100 mHz…10 MHz, mOhm…TOhm
Frequency extendable to 40 MHz or even 100 MHz
2, 3 and 4 electrode configurations
High resolution (up to 2048 frequencies per sweep)
Base precision of 0.01%
+/- 1 V DC Bias
ExtensionPort for application specific frontends
Ultra-fast hardware synchronization through sync in/out connectors (optional)
Simple connection through Full Speed USB, Ethernet or Wireless LAN
PC-based control & data analysis (Sciospec software suit included)
Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.

Medical Research ISX-3 Extras

Two 4 point channels:
- First channel AC coupled
- Multiplexed second channel DC coupled
Additional Multiplexers available
- First 4-point measurement channel DC coupled (external AC coupling interface included)
- Multiplexer: Choose between 16, 32 or 64 channels being AC coupled
Integrated battery pack for measurements up to 3 hours
IsoIO (isolated IO module)
- 12 isolated digital outputs
- 12 isolated digital inputs with pull-ups
- 4 isolated bidrectional I²C ports with pull-ups
- Isolated digital supply rail (default 3.3V)
Optimized for electrial safety

Medical Research ISX-3 with 32-channel multiplexer

In a very simple setup we used the Medical Research ISX-3 with a 32-channel MUX to measure the forearm impedance change caused movements of the hand.

Application brief
IMPEDANCE MEASUREMENT OF A FOREARM

The ISX-3 impedance analyzer is not a medical product and as such its intended purpose does not include diagnosis and/or treatment of patients. But the Medical Research ISX-3 includes several added safety measures specified in accordance with DIN EN 60601-1:2013-12 "Medical electrical equipment – Part 1: General requirements for basic safety and essential performance". These measures ease the application for excemptions for experiments on patients.

John Doe Tweet

Medical grade safety features

Enclosure: prevention of contact between electrical circuitry and external equipment or humans, shielding of measurement frontend (noise reduction) and mechanical safety
Medical grade power supply: external isolated AC/DC converter supplies device with 12 V DC, additionally stand alone battery operation is possible including software controllable electromechanical switch-off for DC input lines
Isolated Full speed USB interface: fullspeed USB port for instrument control and data readout from PC
Ethernet interface: standard RJ45 Ethernet interface for remote control of the instrument
- The interface is not internally isolated. An external medical grade network isolator (included in the offer) can be inserted in the communication path to ensure safe isolation ratings.
IsoIO module: low level communication interfaces including hardware synchronisation and flexible programmable IO standards including serial (UART, SPI, I2C) for use of the instrument with other external equipment
Measurement and control modules: core functionality of the impedance analyzer including measurement control, signal processing, excitation generation and analog measurement functions
AC coupling frontend: External module for AC coupling of measurements ports. Blocks DC currents and adds a high pass filter characterisitic limiting low frequency currents. Isolates the instrument galvanically from the measurement object or patient interface.

Configure your Medical Research ISX-3 and get a quote

Get in touch with us

+49 3425 88399 00

info@sciospec.de

Sciospec Scientific Instruments GmbH
Leipziger Str. 43b, 04828 Bennewitz, Germany

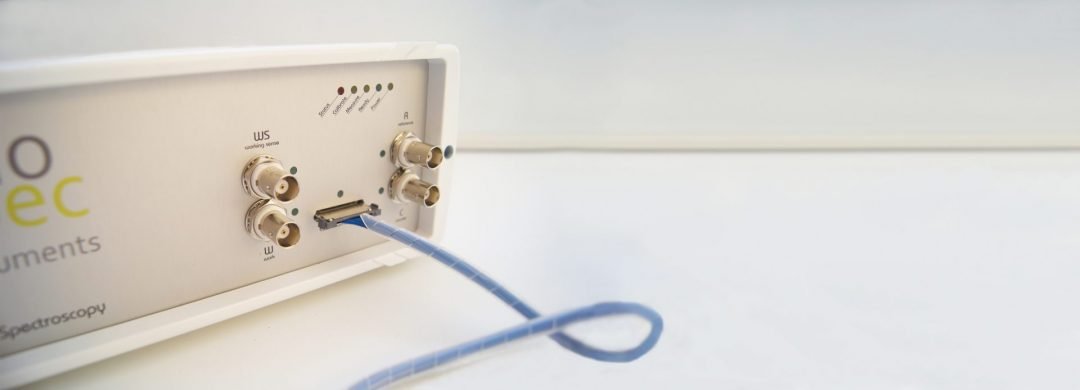

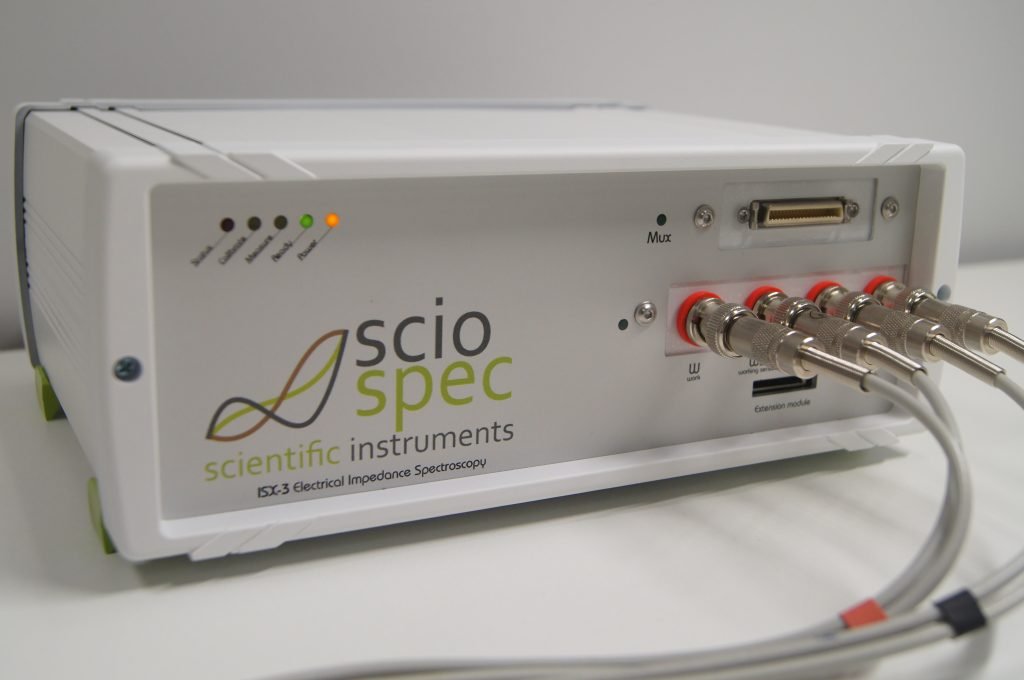

Medical Research ISX-3

FAST. PRECISE. PATIENT-SAFE.

Configure now

Additionally the Medical Research ISX-3 includes measures for enhanced electrical safety including medical grade isolation enabling a safe operation of the instrument in medical research settings.

Publications with the Medical Research ISX-3

publication

Compact impedance analyzer
IF Frontend 100 mHz…10 MHz, mOhm…TOhm
Frequency extendable to 40 MHz or even 100 MHz
2, 3 and 4 electrode configurations
High resolution (up to 2048 frequencies per sweep)
Base precision of 0.01%
+/- 1 V DC Bias
ExtensionPort for application specific frontends
Ultra-fast hardware synchronization through sync in/out connectors (optional)
Simple connection through Full Speed USB, Ethernet or Wireless LAN
PC-based control & data analysis (Sciospec software suit included)
Sciospec COM-Interface for full instrument control from Java, C, Python, LabView, Matlab etc.

Medical Research ISX-3 Extras

Two 4 point channels:
- First channel AC coupled
- Multiplexed second channel DC coupled
Additional Multiplexers available
- First 4-point measurement channel DC coupled (external AC coupling interface included)
- Multiplexer: Choose between 16, 32 or 64 channels being AC coupled
Integrated battery pack for measurements up to 3 hours
IsoIO (isolated IO module)
- 12 isolated digital outputs
- 12 isolated digital inputs with pull-ups
- 4 isolated bidrectional I²C ports with pull-ups
- Isolated digital supply rail (default 3.3V)
Optimized for electrial safety

Medical Research ISX-3 with 32-channel multiplexer

In a very simple setup we used the Medical Research ISX-3 with a 32-channel MUX to measure the forearm impedance change caused movements of the hand.

Application brief
IMPEDANCE MEASUREMENT OF A FOREARM

The ISX-3 impedance analyzer is not a medical product and as such its intended purpose does not include diagnosis and/or treatment of patients. But the Medical Research ISX-3 includes several added safety measures specified in accordance with DIN EN 60601-1:2013-12 "Medical electrical equipment – Part 1: General requirements for basic safety and essential performance". These measures ease the application for excemptions for experiments on patients.

John Doe Tweet

Medical grade safety features

Enclosure: prevention of contact between electrical circuitry and external equipment or humans, shielding of measurement frontend (noise reduction) and mechanical safety
Medical grade power supply: external isolated AC/DC converter supplies device with 12 V DC, additionally stand alone battery operation is possible including software controllable electromechanical switch-off for DC input lines
Isolated Full speed USB interface: fullspeed USB port for instrument control and data readout from PC
Ethernet interface: standard RJ45 Ethernet interface for remote control of the instrument
- The interface is not internally isolated. An external medical grade network isolator (included in the offer) can be inserted in the communication path to ensure safe isolation ratings.
IsoIO module: low level communication interfaces including hardware synchronisation and flexible programmable IO standards including serial (UART, SPI, I2C) for use of the instrument with other external equipment
Measurement and control modules: core functionality of the impedance analyzer including measurement control, signal processing, excitation generation and analog measurement functions
AC coupling frontend: External module for AC coupling of measurements ports. Blocks DC currents and adds a high pass filter characterisitic limiting low frequency currents. Isolates the instrument galvanically from the measurement object or patient interface.

Configure your Medical Research ISX-3 and get a quote

Get in touch with us

+49 3425 88399 00

info@sciospec.de

Sciospec Scientific Instruments GmbH
Leipziger Str. 43b, 04828 Bennewitz, Germany

Medical Research ISX-3

Publications with the Medical Research ISX-3

ISX-3 facts

Medical Research ISX-3 Extras

Medical Research ISX-3 with 32-channel multiplexer

Medical grade safety features

Configure your Medical Research ISX-3 and get a quote

Related products

Related products

ISX-3 EIT

Multiplexer

ISX-5

ISX-3

Get in touch with us

Medical Research ISX-3

Publications with the Medical Research ISX-3

Bereits das Standard-ISX-3 bietet:

Extras für die medizinische Sicherheit

ExtensionPort System

Configure your isx-3 and get a quote

Related products

Related products

LCR-1

ISX-5

ISX-3mini

ISX-3

Get in touch with us

Medical Research ISX-3

Publications with the Medical Research ISX-3

ISX-3 facts

Medical Research ISX-3 Extras

Medical Research ISX-3 with 32-channel multiplexer

Medical grade safety features

Configure your Medical Research ISX-3 and get a quote

Related products

Related products

LCR-3

LCR-1

ISX-3 EIT

Multiplexer

Get in touch with us

Medical Research ISX-3

Publications with the Medical Research ISX-3

ISX-3 facts

Medical Research ISX-3 Extras

Medical Research ISX-3 with 32-channel multiplexer

Medical grade safety features

Configure your Medical Research ISX-3 and get a quote

Related products

Related products

LCR-3

ISX-3 EIT

ISX-5

ISX-3mini

Get in touch with us

Medical Research ISX-3

Publications with the Medical Research ISX-3

ISX-3 facts

Medical Research ISX-3 Extras

Medical Research ISX-3 with 32-channel multiplexer

Medical grade safety features

Configure your Medical Research ISX-3 and get a quote

Related products

Related products

LCR-3

LCR-1

ISX-5

ISX-3

Get in touch with us

Get in touch with us

Get in touch with us
